110130 for BS pipe
TWO-way ball valve
Drive: Inox lever
Connection: CLAMP normative DIN 32676 TAB.4 REIHE C
For TUBE according to normative BS/OD (ASTM A270)
Flow: Full and reduced
Material: Aisi 316L (1.4404)
Measure: from 1/2” to 4”
Seals: Modified Virgin P.T.F.E.
Operating temperature: -20°C+170°C
Outer finish: Polished
Antistatic device ATEX:
II 2G Ex h IIC T4 Gb
II 2D Ex h IIIC T135°C Db
On request:
M.O.C.A. CE 1935/2004
• Seals made of:
PTFE with glass -20°C+170°C
PTFE with carbographite -20°C+180°C
PTFE with inox -20°C+200°C
UHMW High-molecular weight polyethylene -20°C+80°C

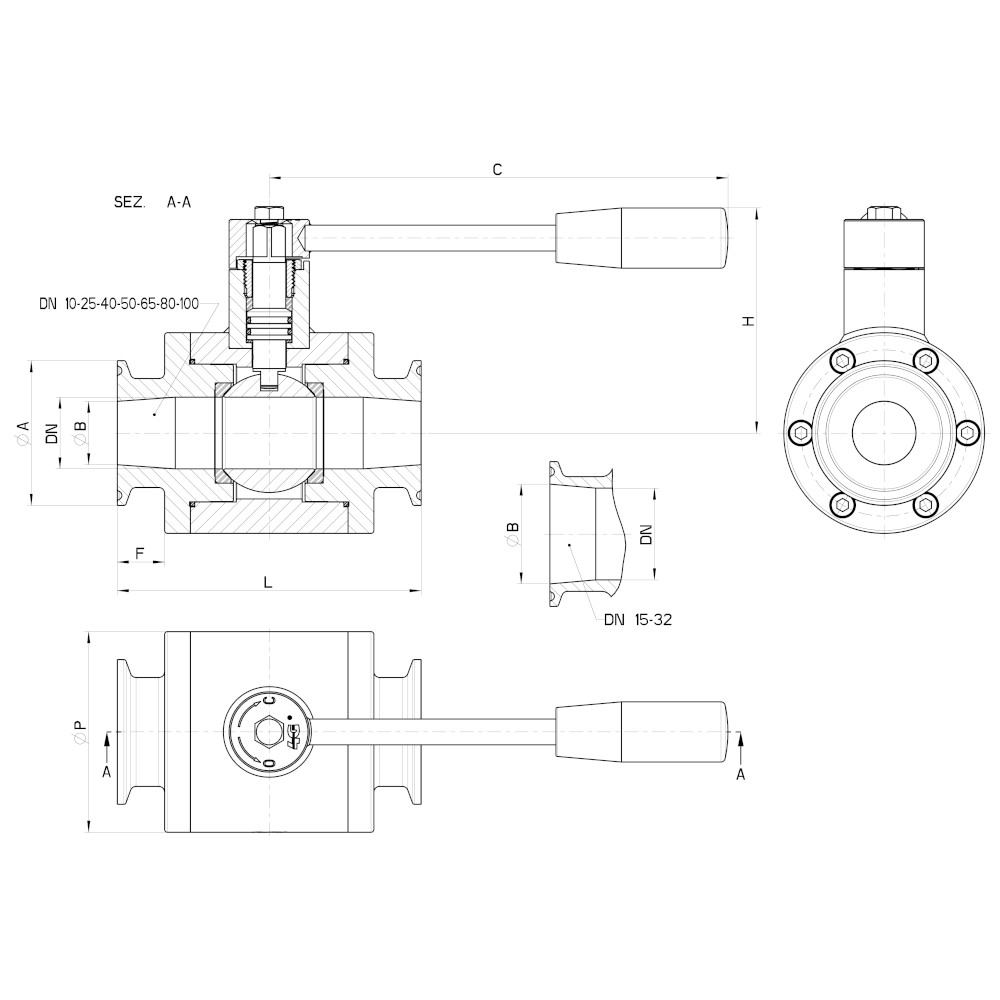

| CLAMP REIHE C | DN | L | Ø A | Ø B | F | H | C | Ø P | PN | Kg | CODE AISI 316L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 10 | 88 | 25 | 9.4 | 16 | 62 | 110 | 48 | 100 | 0,90 | 110130A61210 3D |
| 3/4" | 15 | 92 | 25 | 15.75 | 16.5 | 65 | 110 | 52 | 100 | 1,01 | 110130A61810 3D |
| 1" | 25 | 106 | 50.5 | 22.1 | 16.5 | 79 | 160 | 70 | 64 | 2,26 | 110130A62610 3D |
| 1"1/2 | 32 | 112 | 50.5 | 34.8 | 22 | 111 | 190 | 85 | 64 | 3,17 | 110130A63210 3D |
| 1"1/2 | 40 | 126 | 50.5 | 34.8 | 22 | 115 | 190 | 100 | 64 | 4.66 | 110130A63410 3D |
| 2" | 50 | 134 | 64 | 47.5 | 22 | 123 | 190 | 115 | 40 | 6.15 | 110130A63810 3D |
| 2"1/2 | 65 | 162 | 77.5 | 60.2 | 25 | 140 | 225 | 140 | 40 | 10.95 | 110130A64410 3D |
| 3" | 80 | 182 | 91 | 72.9 | 30 | 152 | 225 | 155 | 40 | 13.17 | 110130A64810 3D |
| 4" | 100 | 194 | 119 | 97.38 | 33 | 166 | 325 | 185 | 25 | 19.38 | 110130A65410 3D |

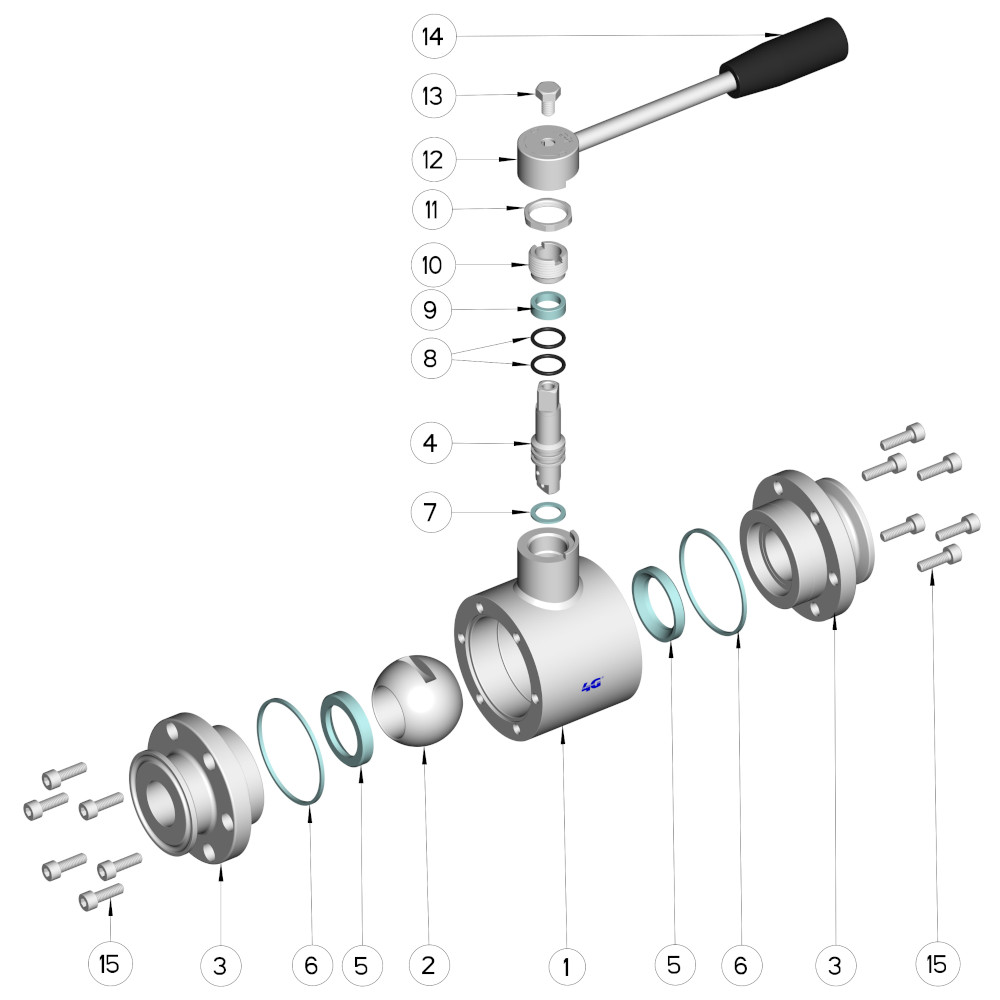

| POSITION | DENOMINATION | PIECES | MATERIAL |
|---|---|---|---|
| 1 | Body | 1 | AISI 316L |
| 2 | Ball | 1 | AISI 316L |
| 3 | Sleeves | 2 | AISI 316L |
| 4 | Stem | 1 | AISI 316L |
| 5 | Ball Seals | 2 | PTFE Vergine Modificato |
| 6 | Sleeve Seals | 2 | PTFE |
| 7 | Stem Seal | 1 | PTFE |
| 8 | Stem or-Seal | 2 | FKM |
| 9 | Stem Seal | 1 | PTFE |
| 10 | Register ring | 1 | AISI 304L (303) |
| 11 | Locknut | 1 | AISI 304L |
| 12 | Lever | 1 | AISI 304L |
| 13 | SCREW | 1 | AISI 304L |
| 14 | Handle | 1 | DUROPLASTO (PF) |
| 15 | Sleeve screw | da 12 a 16 | AISI 304L |
