510130 FOR DIN TUBE
TWO-way ball valve, Three Pieces
Drive: Inox lever
Connection: CLAMP normative DIN 32676 TAB.2 REIHE A
For TUBE according to normative DIN 11850
Flow: Full and reduced
Material: Aisi 316L (1.4404)
Measure: from DN10 to DN100
Seals: Virgin P.T.F.E.
Operating temperature: -20°C+160°C
Outer finish: Polished
On request:
Antistatic device ATEX:
II 2G Ex h IIC T4 Gb
II 2D Ex h IIIC T135°C Db
M.O.C.A. CE 1935/2004
• Seals made of:
PTFE with glass -20°C+170°C
PTFE with carbographite -20°C+180°C
PTFE with inox -20°C+200°C
UHMW High-molecular weight polyethylene -20°C+80°C

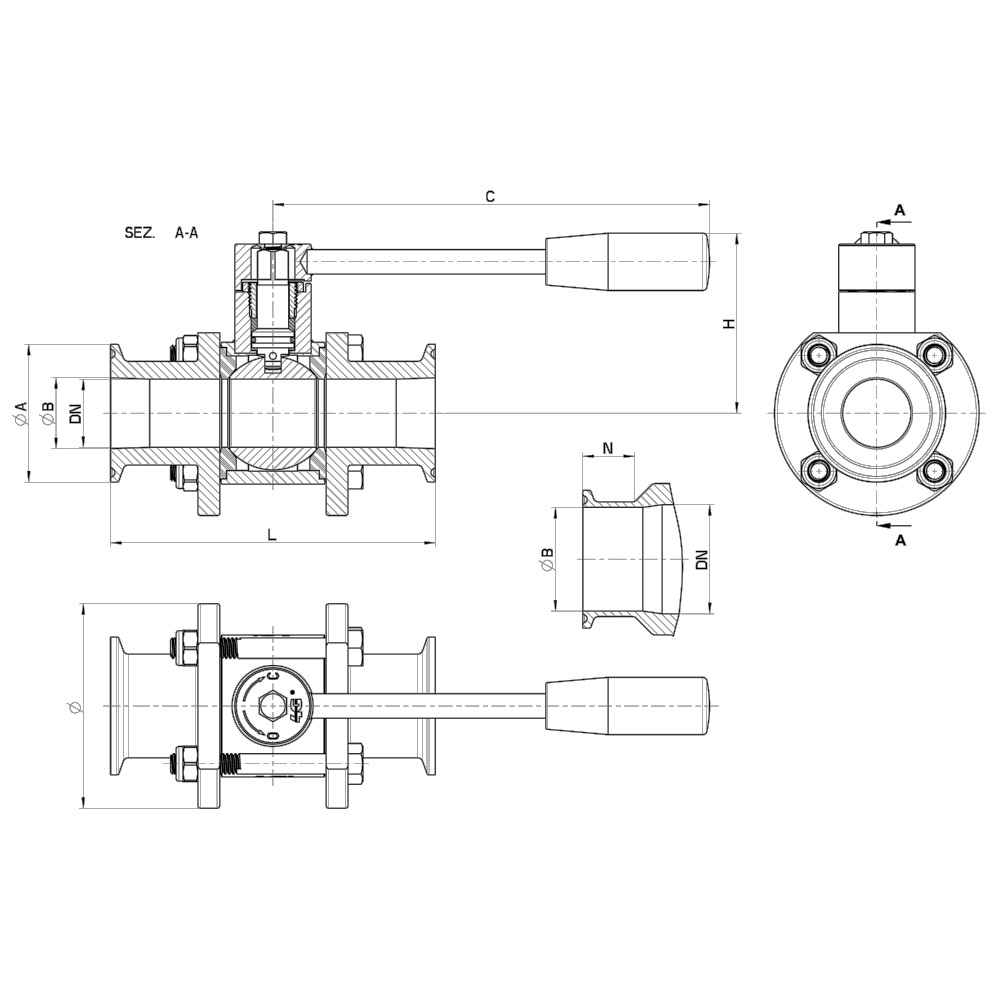

| CLAMP REIHE A DN | L | C | H | N | Ø | Ø A | Ø B | STAY BOLTS | Tightening bolts (Nm) | PN | Kg | CODE AISI 316L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 95 | 110 | 55 | 18 | 55 | 34 | 10 | M6x59 | 4 | 64 | 0.67 | 510130 61410 3D |
| 15 | 95 | 110 | 55 | 18 | 55 | 34 | 16 | M6x59 | 4 | 64 | 0.59 | 510130 61910 3D |
| 20 | 106 | 110 | 59 | 17 | 60 | 34 | 20 | M6x50 | 4 | 40 | 0.70 | 510130 62010 3D |
| 25 | 118 | 160 | 66 | 22 | 75 | 50,5 | 26 | M8x65 | 8 | 40 | 1.54 | 510130 62810 3D |
| 32 | 126 | 160 | 71 | 24 | 85 | 50,5 | 32 | M8x70 | 10 | 25 | 1.77 | 510130 63010 3D |
| 40 | 145 | 190 | 96 | 19 | 100 | 50,5 | 38 | M10x90 | 12 | 25 | 3.21 | 510130 63510 3D |
| 50 | 165 | 190 | 104 | 19 | 120 | 64 | 50 | M10x100 | 13 | 25 | 4.96 | 510130 64010 3D |
| 65 | 191 | 225 | 119 | 19 | 140 | 91 | 66 | M10x120 | 20 | 25 | 8.13 | 510130 64610 3D |
| 80 | 208 | 290 | 130 | 20 | 165 | 106 | 81 | M10x140 | 20 | 16 | 11.65 | 510130 64910 3D |
| 100 | 230 | 325 | 144 | 23 | 200 | 119 | 100 | M12x170 | 22 | 16 | 18.77 | 510130 65610 3D |

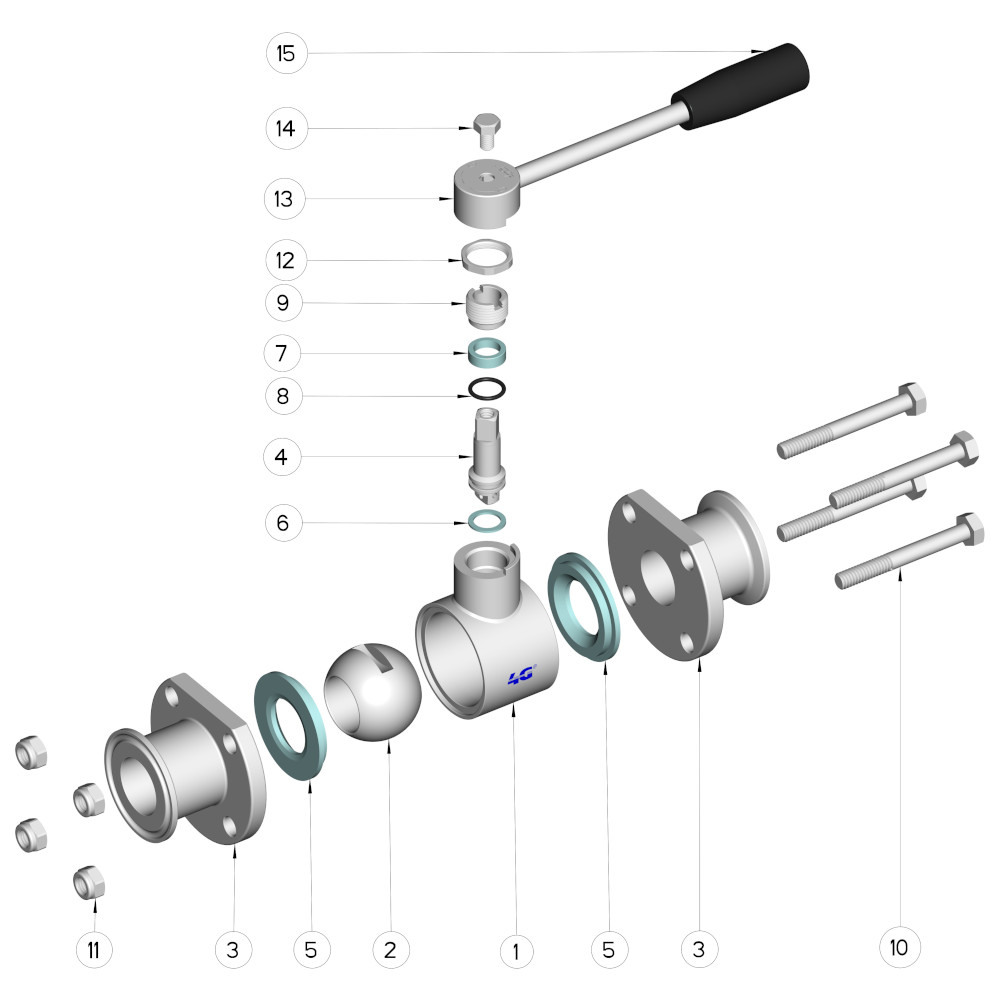

| POS. | DENOMINATION | PCS | MAT. |
|---|---|---|---|
| 1 | Body | 1 | AISI 316L |
| 2 | Ball | 1 | AISI 316L |
| 3 | Sleeves | 2 | AISI 316L |
| 4 | Stem | 1 | AISI 316L |
| 5 | Ball Seals | 2 | PTFE |
| 6 | Stem Seal | 1 | PTFE |
| 7 | Stem Seal | 1 | PTFE |
| 8 | Stem or-Seal | 1 | FKM |
| 9 | Register ring | 1 | AISI 304L (303) |
| 10 | Stay bolt | 4 - 6 | AISI 304L |
| 11 | Self-clamping nut | 4 - 6 | AISI 304L |
| 12 | Nut | 1 | AISI 304L |
| 13 | Lever | 1 | AISI 304L |
| 14 | SCREW | 1 | AISI 304L |
| 15 | Handle | 1 | DUROPLAST (PF) |
