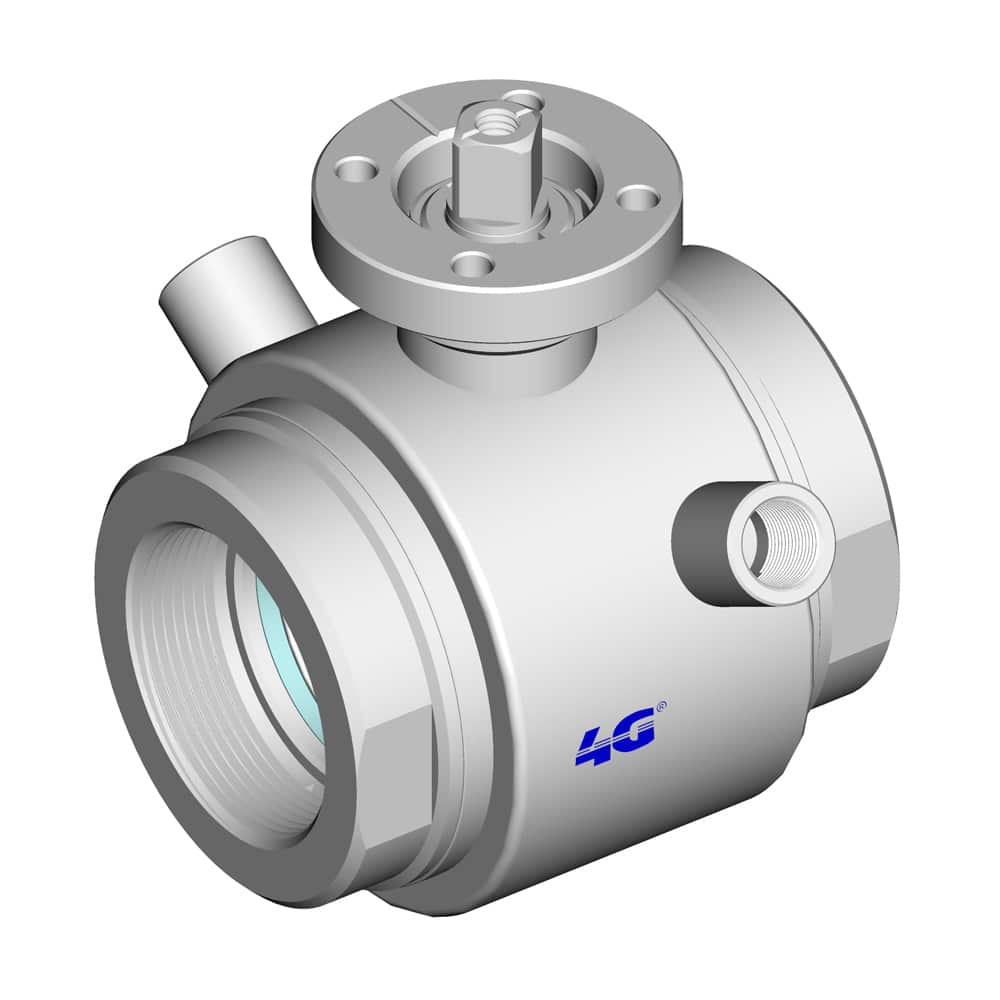

103001C STANDARD SEALS – ISO 228 F – HEATING JACKET
TWO-way ball valve with HEATING JACKET
Drive: ISO 5211 – DIN 3337 flange for actuator
Connection: ISO 228 female/female thread
Flow: Full
Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)
Measure: from 1” to 4”
Modified Virgin P.T.F.E.
Operating temperature: -20°C+170°C
Outer finish: Polished
Screws for mounting actuator included
On request:
Antistatic device ATEX:
II 2G Ex h IIC T4 Gb
II 2D Ex h IIIC T135°C Db
M.O.C.A. CE 1935/2004
• Seals made of:
PTFE with glass -20°C+170°C
PTFE with carbographite -20°C+180°C
PTFE with inox -20°C+200°C
UHMW High-molecular weight polyethylene -20°C+80°C

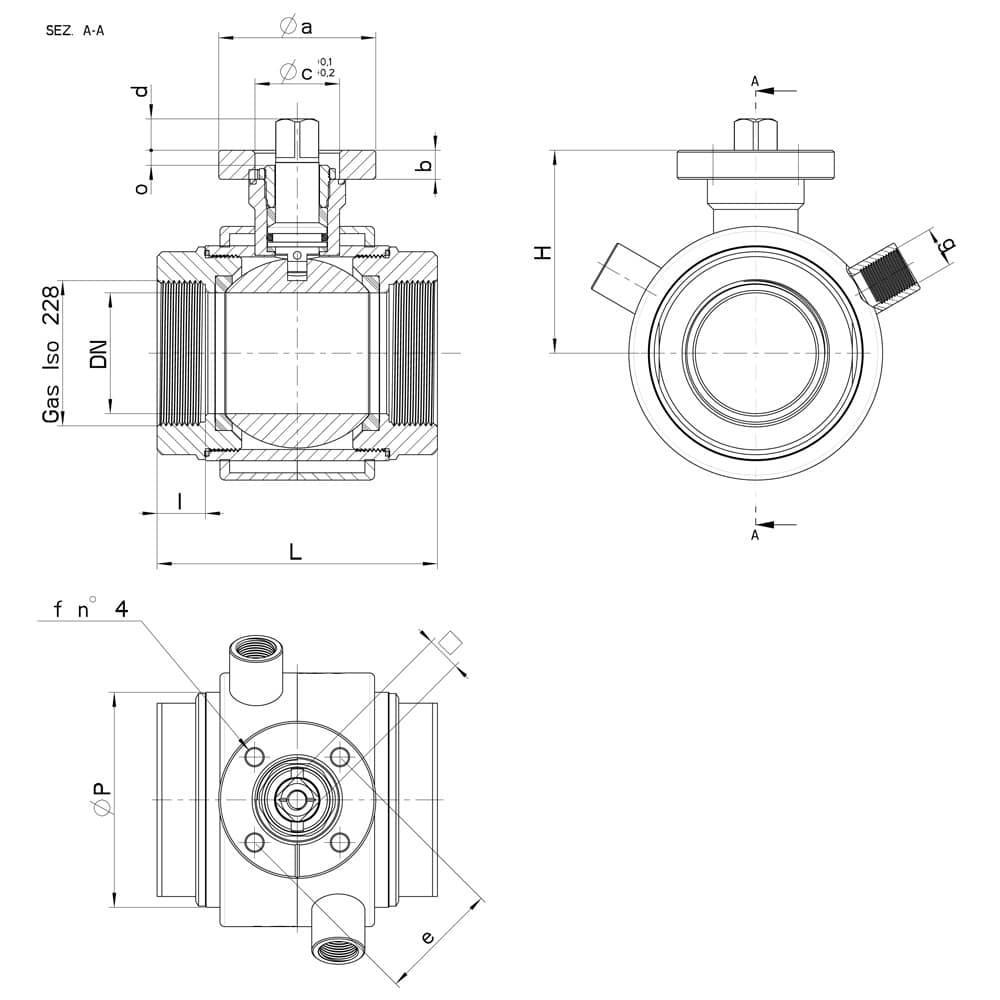

| G | DN | L | I | H | Ø P | g | PN | Kg | ISO-DIN | Ø a | b | Ø cxo | □ | d | e | f | n° 4 BOLTS | Nm | CODE AISI 304L | CODE AISI 316L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1" | 25 | 82 | 19 | 51,5 | 52 | 1/4" | 64 | - | F.04 | 55 | 9 | 30x3 | 11 | 10 | 42 | 6 | M5x16 | 15 | - | 103001C62610 3D |
| 1" | 25 | 82 | 19 | 51,5 | 52 | 1/4" | 64 | - | F.05 | 65 | 9 | 35x3 | 14 | 13 | 50 | 7 | M6x16 | 15 | - | 103001C6261F 3D |
| 1"1/4 | 32 | 92 | 19 | 56,5 | 60 | 1/4" | 64 | - | F.04 | 55 | 9 | 30x3 | 11 | 10 | 42 | 6 | M5x16 | 18 | - | 103001C63010 3D |
| 1"1/4 | 32 | 92 | 19 | 56,5 | 60 | 1/4" | 64 | - | F.05 | 65 | 9 | 35x3 | 14 | 13 | 50 | 7 | M6x16 | 18 | - | 103001C6301F 3D |
| 1"1/2 | 40 | 104 | 20 | 76 | 73 | 3/8" | 64 | - | F.05 | 65 | 12 | 35X6 | 14 | 13 | 50 | 7 | M6X20 | 25 | - | 103001C63410 3D |
| 1"1/2 | 40 | 104 | 20 | 76 | 73 | 3/8" | 64 | - | F.07 | 90 | 12 | 55x6 | 17 | 14 | 70 | 9 | M8x22 | 25 | - | 103001C6341F 3D |
| 2" | 50 | 116 | 20 | 84 | 89 | 3/8" | 40 | 4,24 | F.05 | 65 | 12 | 35x6 | 14 | 13 | 50 | 7 | M6x20 | 30 | - | 103001C63810 3D |
| 2" | 50 | 116 | 20 | 84 | 89 | 3/8" | 40 | - | F.07 | 90 | 12 | 55x6 | 17 | 14 | 70 | 9 | M8x22 | 30 | - | 103001C6381F 3D |
| 2"1/2 | 65 | 128 | 20 | 94,5 | 113 | 1/2" | 40 | - | F.07 | 90 | 12 | 55x7 | 17 | 15 | 70 | 9 | M8x22 | 45 | - | 103001C64410 3D |
| 2"1/2 | 65 | 128 | 20 | 94,5 | 113 | 1/2" | 40 | - | F.10 | 120 | 12 | 70x7 | 22 | 19 | 102 | 11 | M10x25 | 45 | - | 103001C6441F 3D |
| 3" | 80 | 150 | 22 | 106 | 136 | 1/2" | 40 | - | F.07 | 90 | 12 | 55x7 | 17 | 15 | 70 | 9 | M8x22 | 70 | 103001C44810 | 103001C64810 3D |
| 3" | 80 | 150 | 22 | 106 | 136 | 1/2" | 40 | - | F.10 | 120 | 12 | 70x7 | 22 | 19 | 102 | 11 | M10x25 | 70 | 103001C4481F | 103001C6481F 3D |
| 4" | 100 | 178 | 26 | 120 | 167 | 1/2" | 25 | - | F.07 | 90 | 12 | 55x5 | 17 | 15 | 70 | 9 | M8x22 | 80 | 103001C45410 | 103001C65410 3D |
| 4" | 100 | 178 | 26 | 120 | 167 | 1/2" | 25 | - | F.10 | 120 | 12 | 70x5 | 22 | 18 | 102 | 11 | M10x25 | 80 | 103001C4541F | 103001C6541F 3D |

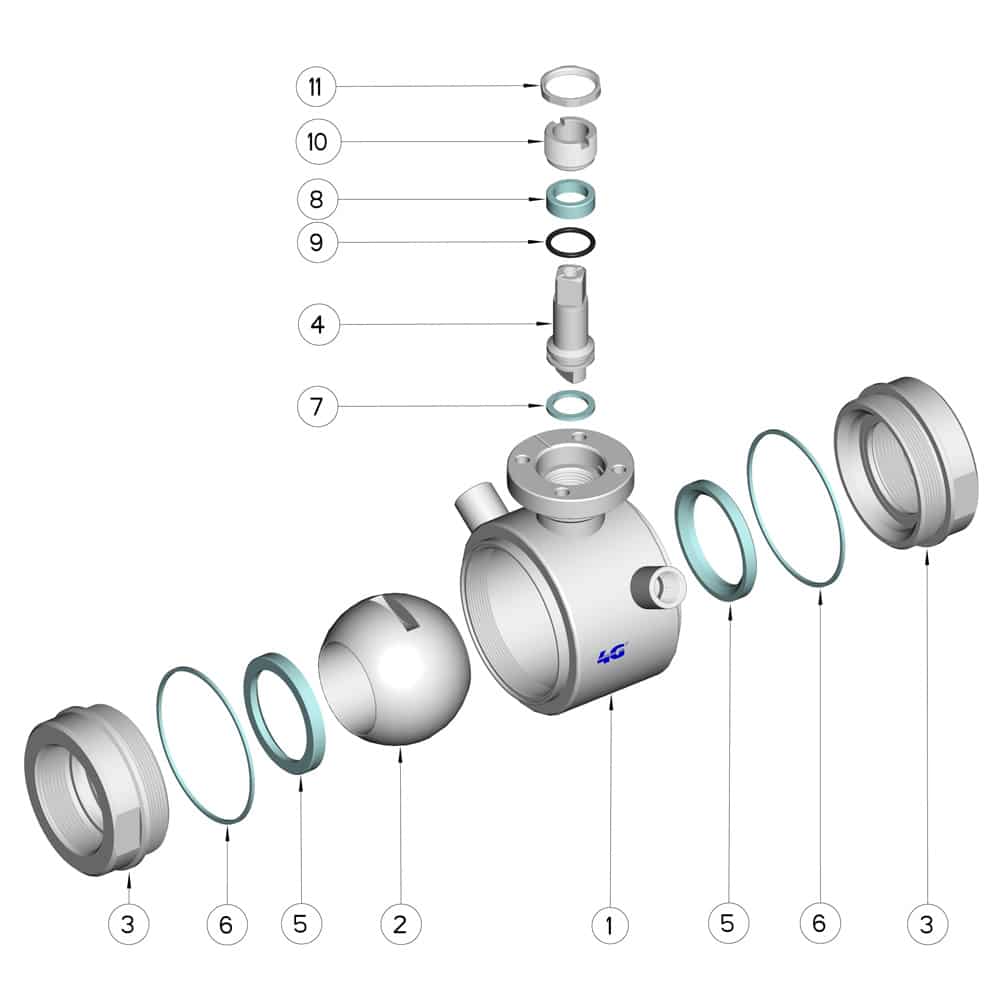

| POSITION | DENOMINATION | PIECES | MATERIAL |
|---|---|---|---|
| 1 | Body | 1 | AISI 316L |
| 2 | Ball | 1 | AISI 316L |
| 3 | Sleeves | 2 | AISI 316L |
| 4 | Stem | 1 | AISI 316L |
| 5 | Ball Seals | 2 | PTFE |
| 6 | Sleeve Seals | 2 | PTFE |
| 7 | Stem Seal | 1 | PTFE |
| 8 | Stem Seal | 1 | PTFE |
| 9 | Stem or-Seal | 1 | FKM |
| 10 | Register ring | 1 | AISI 303 |
| 11 | Locknut | 1 | AISI 303 |
