100169 REIHE B -

100169 REIHE B

Two-way ball valve
Drive: Inox lever
Connection: ASEPTIK normative DIN 11864-3 REIHE B, BKS Form A.
According to normative DIN 11866-B for TUBE.
Flow: full and reduced
Material: Aisi 316L (1.4404)
Measure: from DN 10 to DN 80
Seals: virgin P.T.F.E.
Operating temperature: -20°C +160°C
Outer finish: polished

On request:
Antistatic device ATEX II 2 G-D T4
• Seals made of:
P.T.F.E. with glass
P.T.F.E. with carbographite
High-molecular weight polyethylene

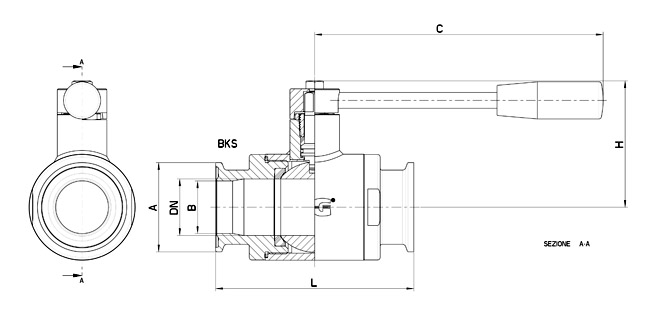

ODDNNKS - Form ALØ AØ BCHPNKgCOD. AISI 316L
13,510Ø 34883410,311050100100169 61110
17,215Ø 3492341411055100100169 61710
21,320Ø 341023418,111058100100169 62310
26,925Ø 50,410650,523,71606564100169 62510
33,725Ø 50,410650,529,71606564100169 62710
33,732Ø 50,411250,529,71607464100169 63110
42,440Ø 641266438,41909264100169 63310
48,340Ø 641266444,31909264100169 63710
60,350Ø 911369156,319011040100169 64110
76,165Ø 10615410672,122011540100169 64710
88,980Ø 11918411984,328513040100169 65110

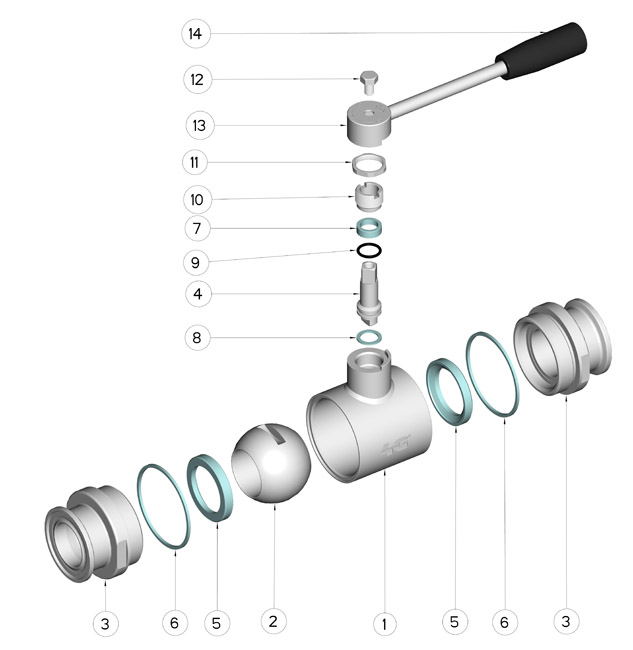

POS.Denomin.PCSMAT.
1Body1AISI 316L
2Ball1AISI 316L
3Sleeves2AISI 316L
4Stem1AISI 316L
5Ball seals2PTFE
6Sleeve seals2PTFE
7Stem seal1PTFE
8Stem seal1PTFE
9Stem or-seal1FKM
10Register ring1AISI 304L (303)
11Nut1AISI 304L
12Washer1AISI 304L
13Lever1AISI 304L
14Handle1DUROPLAST (PF)
