747545 KIT DI MONTAGGIO PER ATTUATORE A NORME ISO 5211
Kit per valvole a sfera CORPO PIATTO (EFFEBI) MOON – SELENE – SPLIT BODY – ANTARES

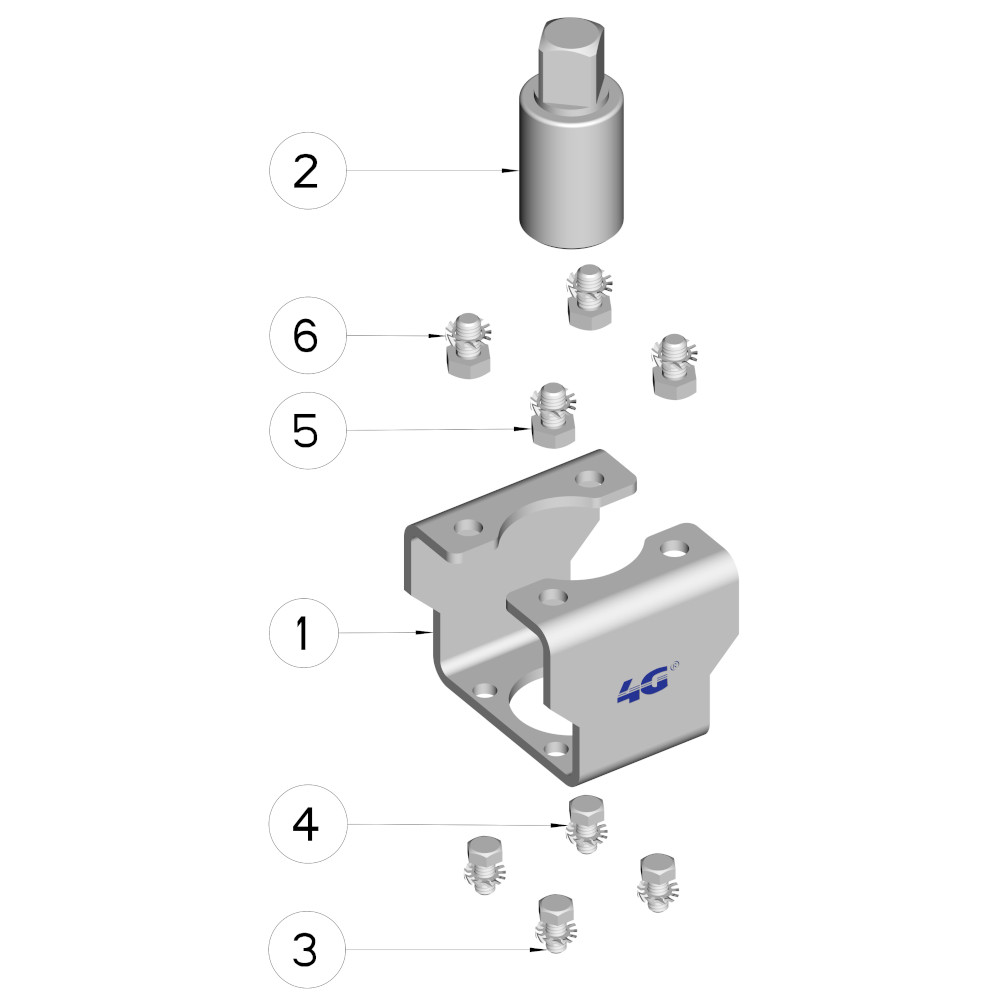

Kit di montaggio per attuatore a norme ISO 5211 comprendente:
Brackets Aisi 304L
Prolunga Aisi 303L
Viti Aisi 304L

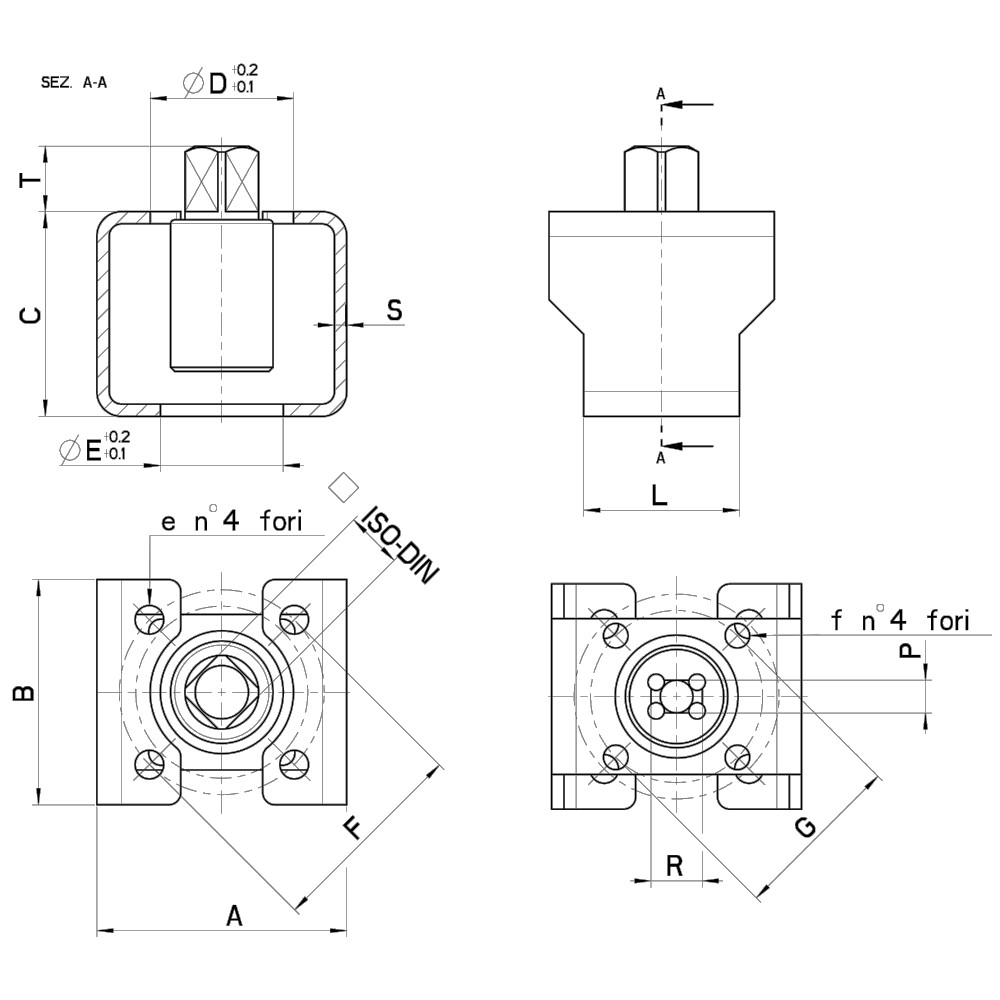

| MODELLO | DN Valvola | ISO 5211 | □ (ATTUATORE) | P x R | A | B | C | L | Ø D | Ø E | H | G | e | f | S | T | Kg. | CODICE AISI 304 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MOON/ANTARES | 15-20 | F.03-F.03 | 9 | 6 x 10,5 | 51 | 45 | 40 | 35 | 25 | 25 | 36 | 36 | 6 | 6 | 3 | 10 | 0,180 | 747545 40500 3D | |
| MOON/ANTARES | 15-20 | F.03-F.03 | 11 | 6 x 10,5 | 51 | 45 | 40 | 35 | 25 | 25 | 36 | 36 | 6 | 6 | 3 | 11 | 0,195 | 747545 40700 3D | |
| MOON/ANTARES | 15-20 | F.04-F.03 | 11 | 6 x 10,5 | 51 | 45 | 40 | 35 | 30 | 25 | 42 | 36 | 6 | 6 | 3 | 11 | 0,191 | 747545 41000 3D | |
| MOON/ANTARES | 25-32 | F.04-F.04 | 11 | 8 x 12,5 | 51 | 45 | 40 | 38 | 30 | 30 | 42 | 42 | 6 | 6 | 3 | 12 | 0,213 | 747545 41500 3D | |
| MOON/ANTARES | 15-20 | F.05-F.03 | 14 | 6 x 10,5 | 61 | 55 | 50 | 35 | 35 | 25 | 50 | 36 | 7 | 6 | 3 | 15 | 0,282 | 747545 42000 3D | |
| MOON/ANTARES | 25-32 | F.05-F.04 | 14 | 8 x 12,5 | 61 | 55 | 50 | 38 | 35 | 30 | 50 | 42 | 7 | 6 | 3 | 16 | 0,321 | 747545 42500 3D | |
| MOON/ANTARES | 40-50 | F.05-F.05 | 14 | 10 x 16,5 | 61 | 55 | 50 | 46 | 35 | 35 | 50 | 50 | 7 | 7 | 3 | 16 | 0,366 | 747545 43000 3D | |
| MOON/ANTARES | 40-50 | F.05-F.05 | 17 | 10 x 16,5 | 61 | 55 | 50 | 46 | 35 | 35 | 50 | 50 | 7 | 7 | 3 | 18 | 0,381 | 747545 43200 3D | |
| MOON/ANTARES | 25-32 | F.07-F.04 | 17 | 8 x 12,5 | 80 | 70 | 50 | 38 | 55 | 30 | 70 | 42 | 9 | 6 | 3 | 19 | 0,400 | 747545 43500 3D | |
| MOON/ANTARES | 40-50 | F.07-F.05 | 17 | 10 x 16,5 | 80 | 70 | 50 | 45 | 55 | 35 | 70 | 50 | 9 | 7 | 3 | 18 | 0,444 | 747545 44000 3D | |
| MOON/ANTARES | 65-80 | F.07-F.07 | 17 | 14 x 22,5 | 80 | 70 | 50 | 70 | 55 | 55 | 70 | 70 | 9 | 9 | 3 | 18,5 | 0,530 | 747545 44500 3D | |
| MOON/ANTARES | 40-50 | F.10-F.05 | 22 | 10 x16,5 | 110 | 100 | 70 | 45 | 70 | 35 | 102 | 50 | 11 | 7 | 3 | 23 | 0,822 | 747545 45000 3D | |
| MOON/ANTARES | 65-80 | F.10-F.07 | 22 | 14 x 22,5 | 110 | 100 | 70 | 89 | 70 | 55 | 102 | 70 | 11 | 9 | 3 | 23 | 1,075 | 747545 45500 3D | |
| MOON (DN 100) SELENE/ANTARES (DN 125) | 100-125 | F.10-F.10 | 22 | 16 x 27,5 | 110 | 100 | 70 | 100 | 70 | 70 | 102 | 102 | 11 | 11 | 3 | 23 | 1,118 | 747545 46000 3D | |
| SOLO ANTARES | 100 | F.10-F.10 | 22 | 16 x 27,5 | 110 | 100 | 70 | 110 | 70 | 70 | 102 | 102 | 11 | 11 | 3 | 23 | 1,362 | 747545 46100 3D | |
| MOON/ANTARES | 65-80 | F.12-F.07 | 27 | 14 x 22,5 | 130 | 115 | 70 | 89 | 85 | 55 | 125 | 70 | 13 | 9 | 3 | 28 | 1,261 | 747545 46500 3D | |
| MOON (DN 100) SELENE/ANTARES (DN 125) | 100-125 | F.12-F.10 | 27 | 16 x 27,5 | 130 | 115 | 70 | 115 | 85 | 70 | 125 | 102 | 13 | 11 | 3 | 28 | 1,385 | 747545 47000 3D | |
| SOLO ANTARES | 100 | F.12-F.10 | 27 | 16 x 27,5 | 130 | 115 | 70 | 115 | 85 | 70 | 125 | 102 | 13 | 11 | 3 | 28 | 1,628 | 747545 47100 3D | |
| SELENE/ANTARES | 150-200 | F.12-F.12 | 27 | 26 x 42,5 | 130 | 115 | 70 | 115 | 85 | 85 | 125 | 125 | 13 | 13 | 3 | 28 | 1,741 | 747545 47200 3D | |
| MOON (DN 100) SELENE/ANTARES (DN 125) | 100-125 | F.14-F.10 | 36 | 16 x 27,5 | 150 | 130 | 70 | 130 | 100 | 70 | 140 | 102 | 17 | 11 | 4 | 34 | 2,377 | 747545 47500 3D | |
| SOLO ANTARES | 100 | F.14-F.10 | 36 | 16 x 327,5 | 150 | 130 | 70 | 130 | 100 | 70 | 140 | 102 | 17 | 11 | 4 | 34 | 2,377 | 747545 47600 3D | |
| SELENE/ANTARES | 150-200 | F.14-F.12 | 36 | 26 x 42,5 | 150 | 130 | 70 | 130 | 100 | 85 | 140 | 125 | 17 | 13 | 4 | 34 | 2,441 | 747545 48000 3D |
