808016 KIT RICAMBIO GUARNIZIONI PER VALVOLA A SFERA – TENUTA AVVOLGENTE
Kit ricambio guarnizioni per valvola a sfera
Applicabile ai seguenti articoli:
Art. 16
| DN | CODICE PTFE | Kg |
|---|---|---|
| 40 | 808016 03410 | 0,160 |
| 50 | 808016 03810 | 0,266 |
| 65 | 808016 04410 | - |
| 80 | 808016 04810 | 0,415 |
| 100 | 808016 05410 | 0,780 |
| 125 | 808016 05810 | - |

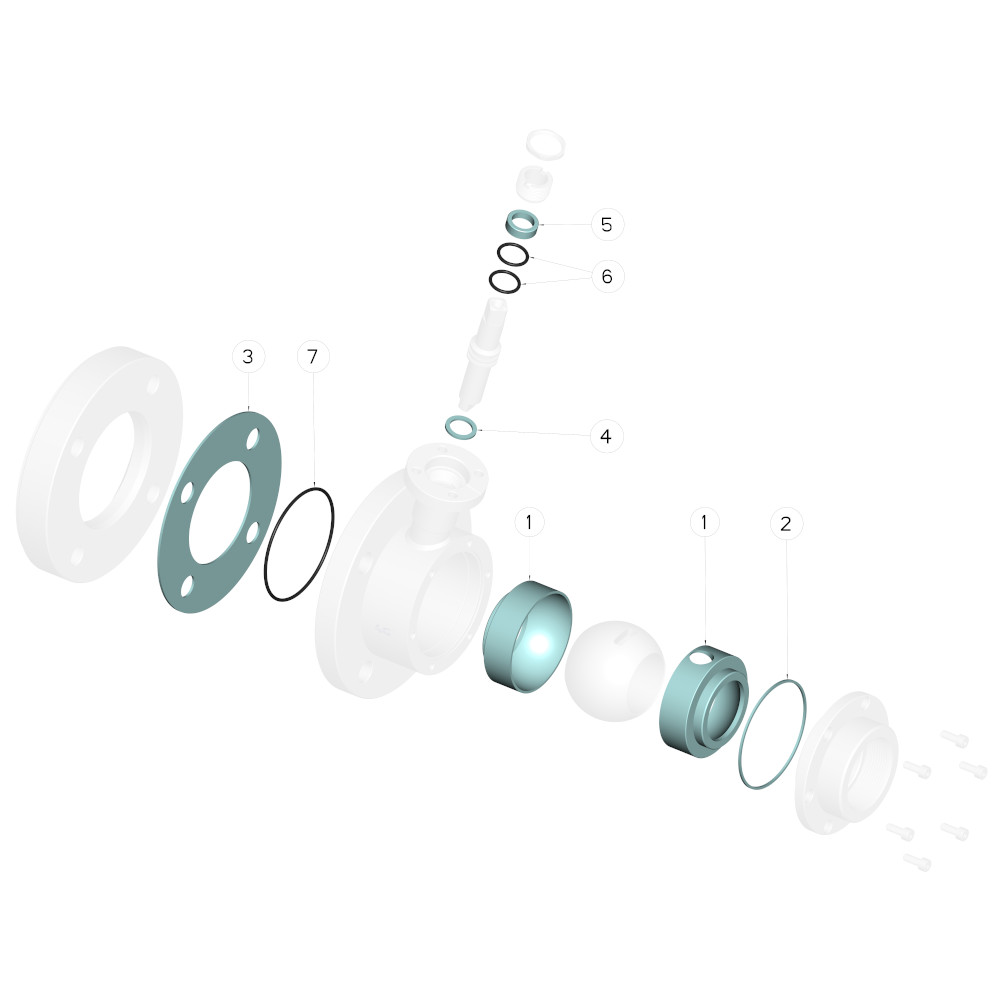

| Pos. | Denominazione | P.zi | Mat. |
|---|---|---|---|
| 1 | Guarnizione Sfera | 2 | PTFE |
| 2 | Guarnizione Manicotto | 1 | PTFE |
| 3 | Guarnizione Flangia | 1 | PTFE |
| 4 | Guarnizione inferiore perno | 1 | PTFE |
| 5 | Guarnizione superiore perno | 1 | PTFE |
| 6 | OR di tenuta perno | 2 | FKM |
| 7 | OR di tenuta flangia | 1 | EPDM |
